Strongbond® PVDF aluminum composite panel

strongbond_aluminum_composite_panel_1


STONGBOND® PVDF Aluminum Composite Panel

Specifications

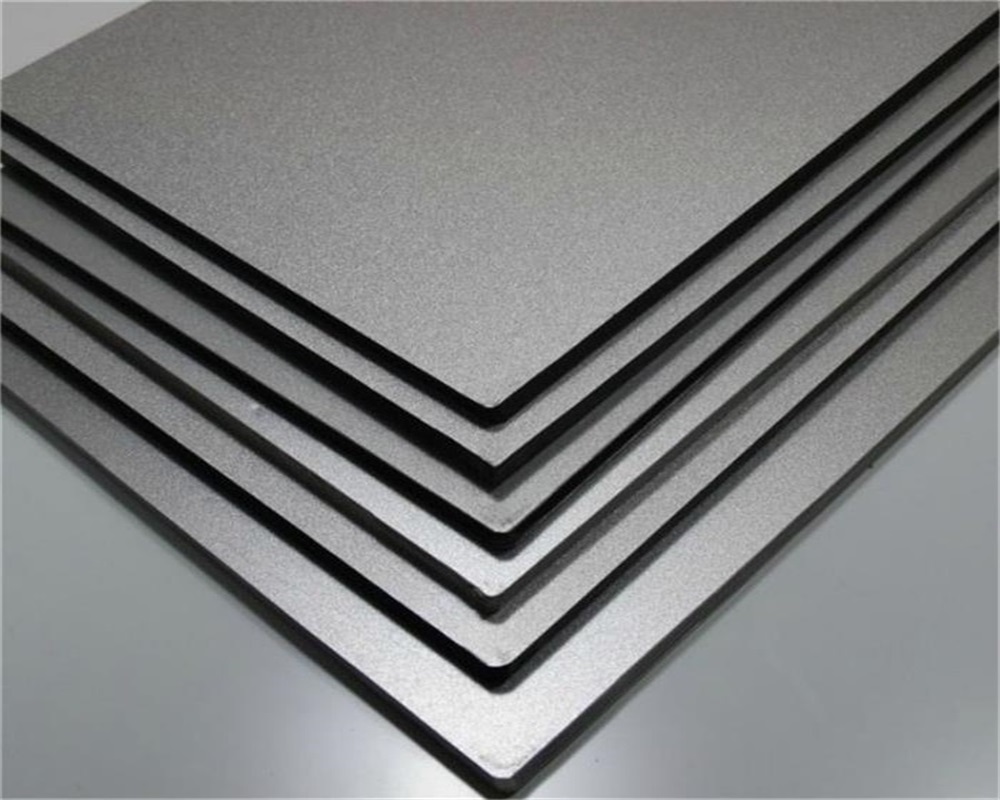

1) Composed of a polyethylene core between two aluminum sheets
2) Coated with extra-durable PVDF (fluororesin) resin, a composite structure which features excellent characteristics (fireproof,waterproof, heat-insulated, sound-insulated and resistance against  corrosion, pollution and wear)
3) Panel thickness:
     a) 4mm (standard)
     b) 2 - 8mm available upon request.
4) Aluminum skin thickness:
     a) 0.50 x 0.50mm
     b) 0.40 x 0.40mm
     c) 0.30 x 0.30mm
5) Width:
    a) 1,220mm (standard) 1250mm,1500mm
    b) Maximum width is 2000mm

    c) Other widths available upon request.
5) Length:
    a) 2,440mm (standard)
    b) Up to 6,000mm (recommended).
STONGBOND® PVDF Aluminum Composite Panel
Features
1) Super peeling strength.
2) Excellent surface flatness and smoothness
3) Superior weather, corrosion and pollutant resistance
4) Even coating, various colors
5) Fireproof, excellent heat and sound insulation
6) Superior impact resistance
7) Lightweight and easy to process.
8) Easy to maintain.
STONGBOND® PVDF Aluminum Composite Panel
Applications
1) Building exterior curtain walls
2) Decoration and renovation additions for old buildings.
3) Decoration of interior walls, ceilings, bathrooms, kitchens and balconies
4) Shop door decoration
5) Advertisement board display platforms and signboards
6) Wallboards and ceilings for tunnels.
7) Industrial materials, materials for vehicles and boats.



产品展示

全力为中小企业提供网页设计、网站建设等店铺详情装修设计、平面设计、品牌推广等高度定制服务

PVDF_aluminum_composite_panel
PVDF_aluminum_composite_panel_2

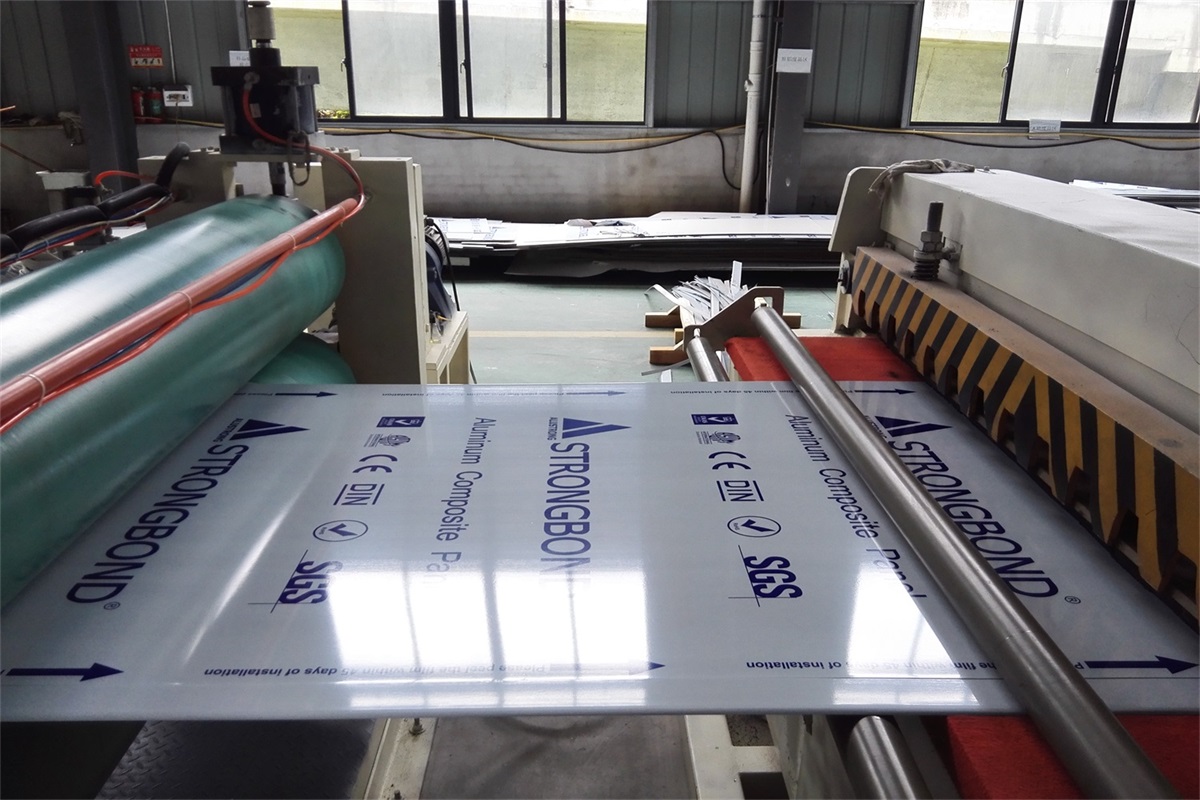

aluminum_composite_panel_production
